Automatic Rotary Injection Machine For high heel shoes PP insole, TPU/TPR/TR/PVC outsole

  • 1
  • 2
  • 3

Brand Name : Kingstone

Model Number : JL-268

Certification : CE,SGS

Place of Origin : Dongguan City, China

MOQ : 1 SET

Price : negotiable

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 50 SETS PER MONTH

Delivery Time : 25-45 DAYS

Packaging Details : Standard Export Package

Name : Inner sole making machine

Workstaions : 12/16/20/24 stations

Material : PP

Features : less workers than traditional

Output : 200-280 pairs/hour

Gurantee : 2 years, the longest in China

Workers need : 1-2 workers

Contact Now

Automatic Rotary Injection Machine For high heel shoes PP insole, TPU/TPR/TR/PVC outsole







Features:



1. It is particularly effective to make PP setting inner sole.



2. Suitable material: PP, TPU



3. The devised C-shaped structure that strengthens cooling system suits particularly the need for reinforced cooling effect.



4. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.



5. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is clearly indicated.



6. Equipped with cooling water system, can cool the machine and mould.





Specifications
Machine model JL-268-20S
Mould-clamping Unit
Work station   20
Clamping force TON 120
Opening stroke MM 210
Mould dimension MM 600*280
Height of injection nozzle MM 280
Injection Unit
Injector SET 1
Screw diameter MM 60
Screw L/D ratio L/D 20
Max.injection volume cm3 600
Injection speed Cm/s 10
Screw rotation speed R.P.M 0-200
Electricity Consumption
Heating power of injector KW 7
Hydraulic unit motor KW 18.5
Total electric consumption KW 25.5
Temperature control Section 4
Dimension and Weight
Machine dimension (L*W*H)MM 6000*3600*2300
Machine weight KGS 6500
*Note:Above data only for reference.




Machine Details:



Automatic Rotary Injection Machine For high heel shoes PP insole, TPU/TPR/TR/PVC outsole

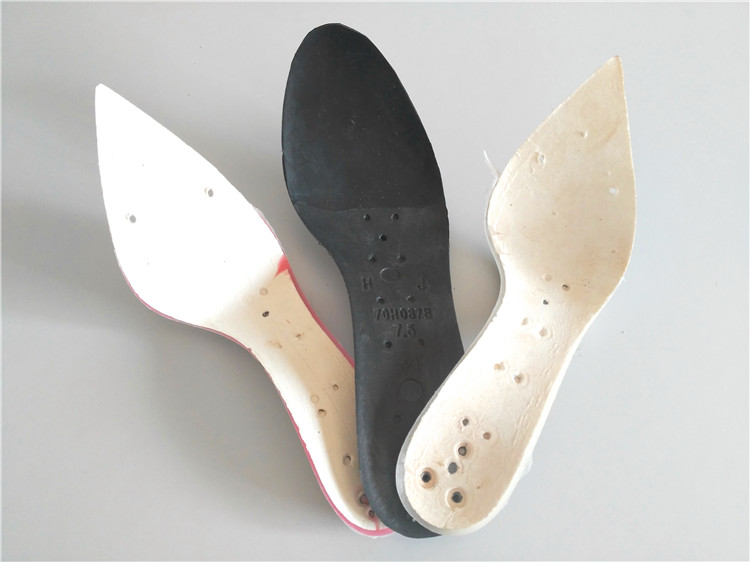

Samples produced by this machine:

Automatic Rotary Injection Machine For high heel shoes PP insole, TPU/TPR/TR/PVC outsole
